Standard for connection fans with 4 wires was developed by Intel. Main
purpose of creation of new standard is possibility revolution measuring
with low fan speeds and precision control of revolution in all speed
range.
Signal description
Signal GND is ground and 12V is voltage supply for fan.
Signal Sense (tachometer) provides two pulses per revolution of fan.
Output is opened collector and main board must have pull-up resistor to 12V.
Signal Control (PWM) is input for PWM pulses.
Base frequency is 25kHz and it is acceptable from 21kHz to 28kHz.
Input has TTL level and includes pull-up resistor to 5V or to 3.3V
in new constructions. Signal is not inverted and 100% PWM means maximal
revolutions of fan. Motherboard has open-collector type output.
This construction guarantee, that with disconnected PWM signal will runs
fan with maximum revolutions.
Connector circuit:
Example of motherboard logic:
Diode D1 protects PWM output from motherboard in case, that fan has
pull-up to +5V and motherboard logic is on +3.3V.
Input TACH includes pull-up to +12V and next voltage ratio box, which
guarantee on the I/O board logic around 2.3V (logical 1).
Example of 4-Wire fan
I had in hand fan NIDEC F09A-12B3S1, which is supplied with boxed Intel
processors. Fan is high-quality and includes two ball bearings.
It is superior made with good balanced airscrew.

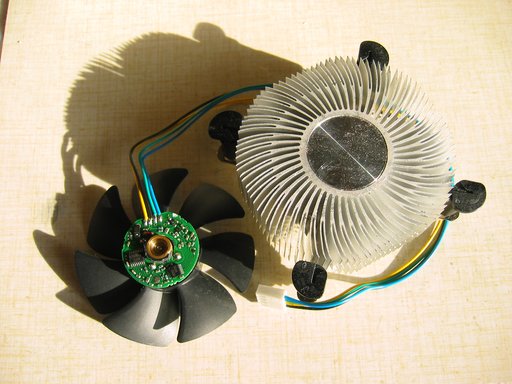

I tried to nondestructive demounting but I failed, because it is practically
not possible. I disassembled it without damage of electronics.

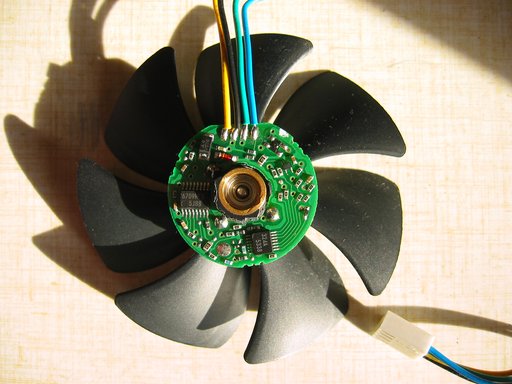

I find that fan contains relatively complicated electronics and few
integrated circuits which are unknown to me. Copying of circuit
will be very time consument and without knowledge of integrated circuits
practically for nothing. I decided to not copy for now.
Photographs
Links
- http://www.formfactors.org/developer/specs/4_Wire_PWM_Spec.pdf 4-Wire connection specification.
- http://www.nidec.com Nidec - fan manufacturer.
