This circuit will automatically switch on several mains-powered "slave"
loads when a "master" load is turned on. For example, it will switch on
the amplifier and CD player in a stereo system when the receiver is
turned on. It works by sensing the current draw of the "master" device
through a low value high wattage resistor using a comparator. The output
of that comparator then switches on the "slave" relay. The circuit can
be built into a power bar, extension cord or power center to provide a
convenient set of "smart" outlets that switch on when the master
appliance is powered (turn on the computer monitor and the computer,
printer and other peripherals come on as well).
 |

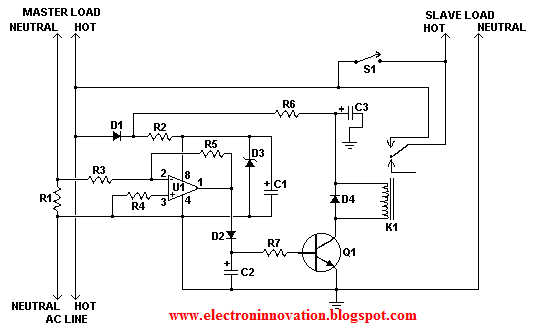

Schematic
|
Parts
|
Part
|
Total Qty.
|
Description
|
| C1, C3 | 2 | 10uF 35V Electrolytic Capacitor |
| C2 | 1 | 1uF 35V Electrolytic Capacitor |
| R1 | 1 | 0.1 Ohm 10W Resistor |
| R2 | 1 | 27K 1/2W Resistor |
| R3, R4 | 1 | 1K 1/4W Resistor |
| R5 | 1 | 470K 1/4W Resistor |
| R6 | 1 | 4.7K 1/2W Resistor |
| R7 | 1 | 10K 1/4W Resistor |
| D1, D2, D4 | 3 | 1N4004 Rectifier Diode |
| D3 | 1 | 1N4744 15V 1 Watt Zener Diode |
| U1 | 1 | LM358N Dual Op Amp IC |
| Q1 | 1 | 2N3904 NPN Transistor |
| K1 | 1 | Relay, 12VDC Coil, 120VAC 10A Contacts |
| S1 | 1 | SPST Switch 120AVC, 10A |
| MISC | 1 | Board, Wire, Socket For U1, Case, Mains Plug, Socket |
Notes
- This circuit is designed for 120V operation. For 240V operation, resistors R2 and R6 will need to be changed.
- A maximum of 5A can be used as the master unless the wattage of R1 is increased
- S1 provides a manual bypass switch.
- THis circuit is not isolated from the mains supply. Because
of this, you must exercise extreme caution when working around the
circuit if it is plugged in.
